L2.Finance-zk
About
Celer’s Layer2.finance in ZK proofs Mode Built with StarkEx from StarkWare.
About
Celer’s Layer2.finance in ZK proofs Mode Built with StarkEx from StarkWare.
Funds can be stolen if
Funds can be lost if
Users can be censored if
MEV can be extracted if
Sequencer failure
Force via L1State validation
ZK proofs (ST)STARKs are zero knowledge proofs that ensure state correctness.
Data availability
External (DAC)Proof construction relies fully on data that is NOT published onchain. There exists a Data Availability Committee (DAC) that is tasked with protecting and supplying the data.
Exit window
NoneThere is no window for users to exit in case of an unwanted regular upgrade since contracts are instantly upgradable.
Proposer failure
Use escape hatchUsers are able to trustlessly exit by submitting a Merkle proof of funds.
Validity proofs ensure state correctness
Each update to the system state must be accompanied by a ZK proof that ensures that the new state was derived by correctly applying a series of valid user transactions to the previous state. These proofs are then verified on Ethereum by a smart contract. The system state is represented using Merkle roots.
Zero knowledge STARK cryptography is used
Despite their production use zkSTARKs proof systems are still relatively new, complex and they rely on the proper implementation of the polynomial constraints used to check validity of the Execution Trace.
Funds can be lost if the proof system is implemented incorrectly.
Data is not stored on chain
The balances of the users are not published on-chain, but rather sent to external trusted parties, also known as committee members. A state update is valid and accepted on-chain only if at least a quorum of the committee members sign a state update.
Funds can be lost if the external data becomes unavailable (CRITICAL).
Users can be censored if the committee restricts their access to the external data.
The system has a centralized operator
The operator is the only entity that can propose blocks. A live and trustworthy operator is vital to the health of the system. Typically, the Operator is the hot wallet of the StarkEx service submitting state updates for which proofs have been already submitted and verified.
MEV can be extracted if the operator exploits their centralized position and frontruns user transactions.
Users can force exit the system
Force exit allows the users to escape censorship by withdrawing their funds. The system allows users to force the withdrawal of funds by submitting a request directly to the contract on-chain. The request must be served within a defined time period. If this does not happen, the system will halt regular operation and permit trustless withdrawal of funds.
Users can be censored if the operator refuses to include their transactions. However, there exists a mechanism to independently exit the system.
Regular exit
Forced exit
If the user experiences censorship from the operator with regular exit they can submit their withdrawal requests directly on L1. The system is then obliged to service this request. Once the force operation is submitted and if the request is serviced, the operation follows the flow of a regular exit.
Emergency exit
If the enough time deadline passes and the forced exit is still ignored the user can put the system into a frozen state, disallowing further state updates. In that case everybody can withdraw by submitting a merkle proof of their funds with their L1 transaction.

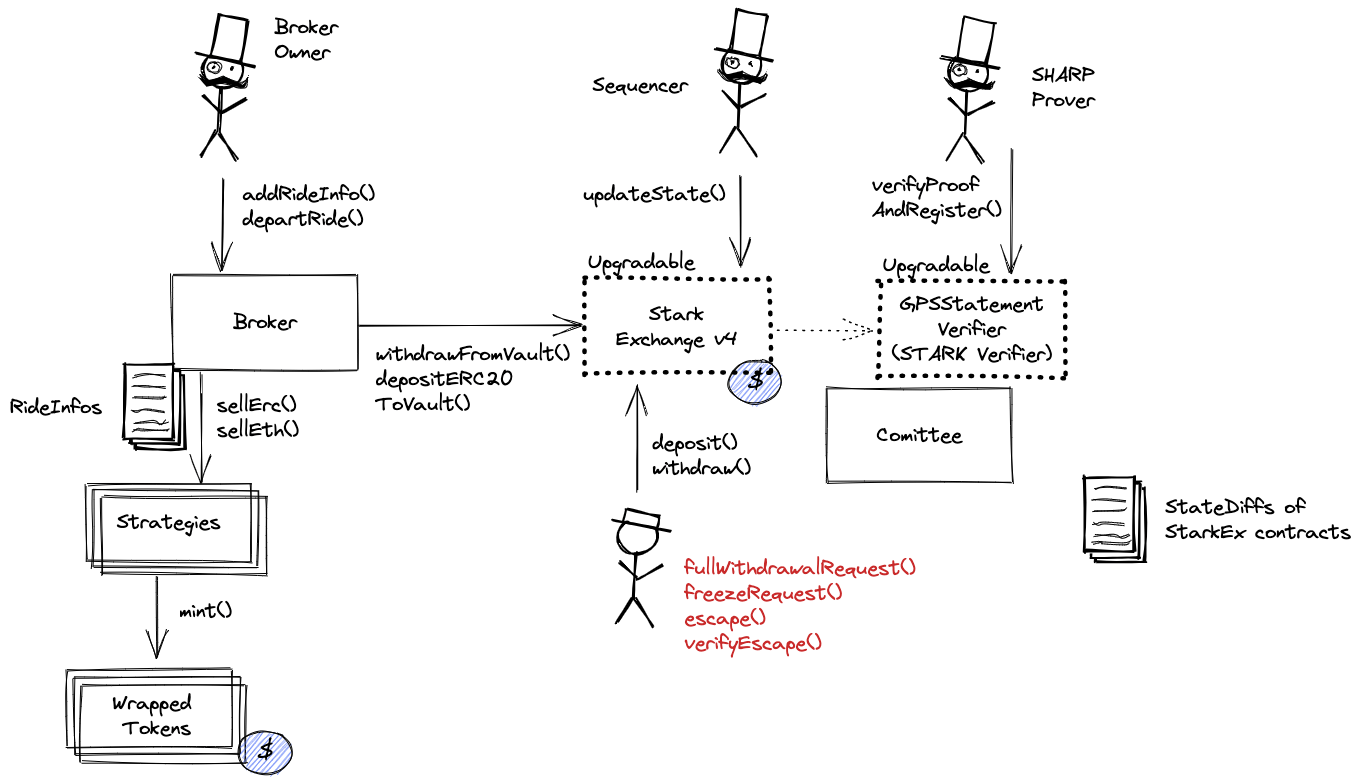

The system uses the following set of permissioned addresses:
Can upgrade implementation of the system, potentially gaining access to all funds stored in the bridge. Currently there is no delay before the upgrade, so the users will not have time to migrate.
There exists a Data Availability Committee with unknown members and an unverified smart contract.
Can upgrade implementation of SHARP Verifier, potentially with code approving fraudulent state. Currently there is no delay before the upgrade, so the users will not have time to migrate.
Most Broker functionality is restricted only for the owner, it includes managing rides, setting prices or slippages, burning shares.
Allowed to update state of the system. When Operator is down the state cannot be updated.
The system consists of the following smart contracts on the host chain (Ethereum):
This contract stores the following tokens: ETH, USDC, USDT.
Implementation used in:
The source code of this contract is not verified on Etherscan.
Broker manages investment strategies on L1 for tokens deposited to the system. Strategies invest in specific protocols, e.g. Compound and they escrow LP tokens as custom Wrapped tokens.
It is through this contract that groups of users interact with the Compound DeFi protocol.
CallProxy for GpsStatementVerifier.
Proxy used in:
Starkware SHARP verifier used collectively by Starknet, Sorare, ImmutableX, Apex, Myria, rhino.fi and Canvas Connect. It receives STARK proofs from the Prover attesting to the integrity of the Execution Trace of these Programs including correctly computed state root which is part of the Program Output.
Implementation used in:
MemoryPageFactRegistry is one of the many contracts used by SHARP verifier. This one is important as it registers all necessary on-chain data.
Implementation used in:
Same as MemoryPageFactRegistry but stores facts proved by the old SHARP Verifier, used as a fallback.
Implementation used in:
The current deployment carries some associated risks:
Funds can be stolen if a contract receives a malicious code upgrade. There is no delay on code upgrades (CRITICAL).
Funds can be stolen if the source code of unverified contracts contains malicious code (CRITICAL).
